SPECIFICATIONS

Brand Name: OLPAY

Origin: Mainland China

Hign-concerned Chemical: None

Certification: CE

Talk Range: 5-8km

Walkie Talkie Type: Intrinsically Safe Atex radio

Place of Origin: Fujian, China

Model Number: RS-589E

Terminal style: Handheld

Dimensions: 61mm(W)*126mm(H)*37mm(D)

Frequency Range: 136-174MHz & 400-480MHz

Storage Channel: 256

Output Power: 3.5W / 1W (Max 3.5W)

Operating Voltage: DC7.4V

Warranty: 12 Months

Weight: 260g

Battery capacity: 1800mAh Li-ion Battery

Radio Type: Professional Radio

Applications: Outdoor

Function: DTMF Encode and Decode Functions

Feature: ANI CTCSS/DCS Built-in

Explosion-proof Grade: Ex ib IIB T4 Gb

Features

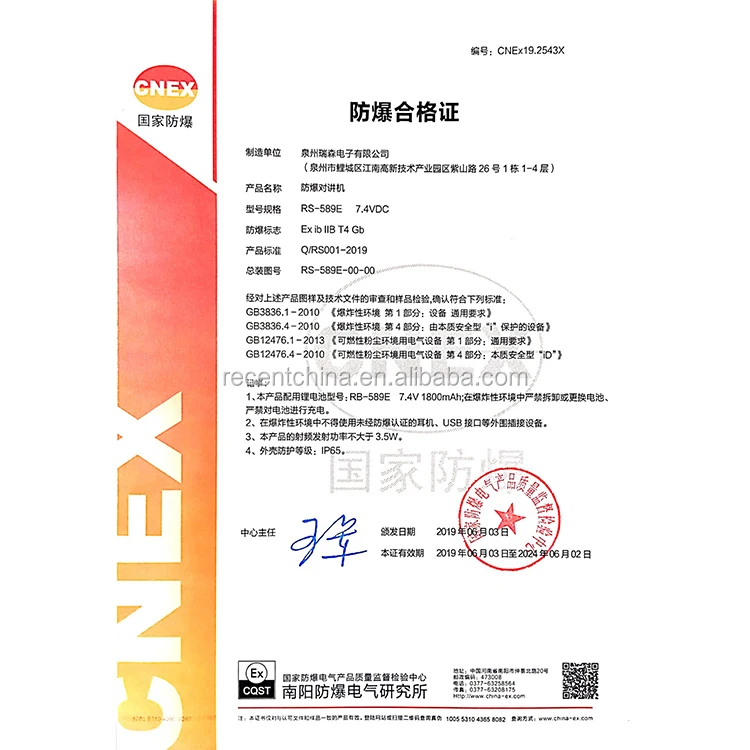

Explosion-proof Number: CNEx19.2543X
Explosion-proof Mark: Ex ib ⅡB T4 Gb
Flammable Dust Explosion-proof
Dual Band Frequency,Dual Display and Standby
Torch Light Function
DTMF Encode and Decode Functions
ANI Function
2Tone Encode and Decode Functions
CTCSS/DCS Built-in
2x 128 Memory Channels
25 Memory FM Radio Channels

Specification

Transmitter			Receiver
Output power	3.5W/1W	RX Sensitivity(12dB SINAD)			≤ 0.2µV
Modulation	16k0F3E(Wide Band) 8k5F3E (Narrow Band)	Adjacent Channel Selectivity			≥55dB(W) ≥50dB(N)
Adjacent Channel Power	≥65dB(W);≥55dB(N)	Intermodulation Anti-interference			≥55dB(W);≥50dB(N)
Maximum Frequency Deviation	±5KHz(W);≥2.5KHz(N)	Common Channel Inhitition			≥-8 dB
Audio Distortion	≤5%	Blocking Characteristic			≥85 dB
Frequency Stability	±2.5ppm	Antenna Impedance			50 ohm
Frequency Step	5/6.25/10/12.5/25/50/100KHz	Waterproof and Dustproof Level			IP65

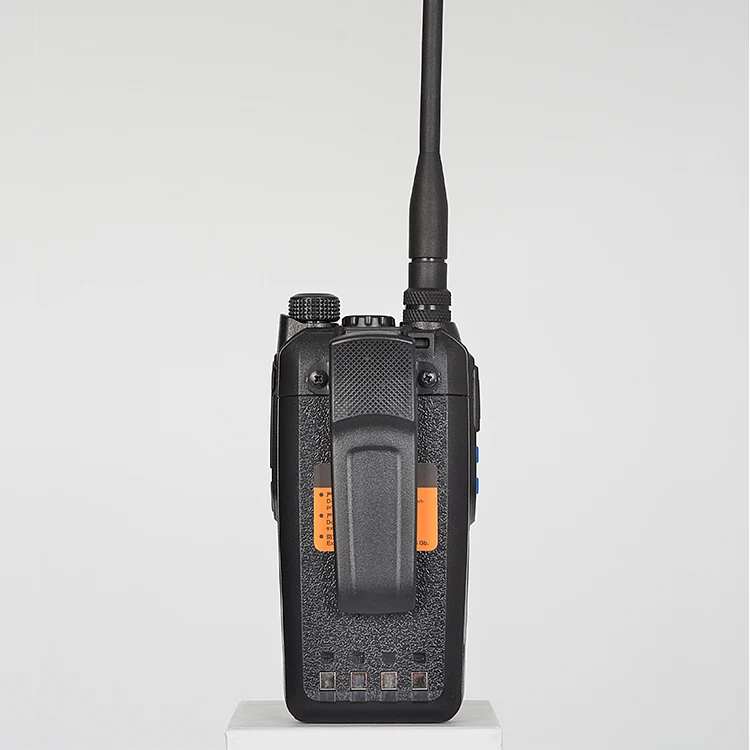

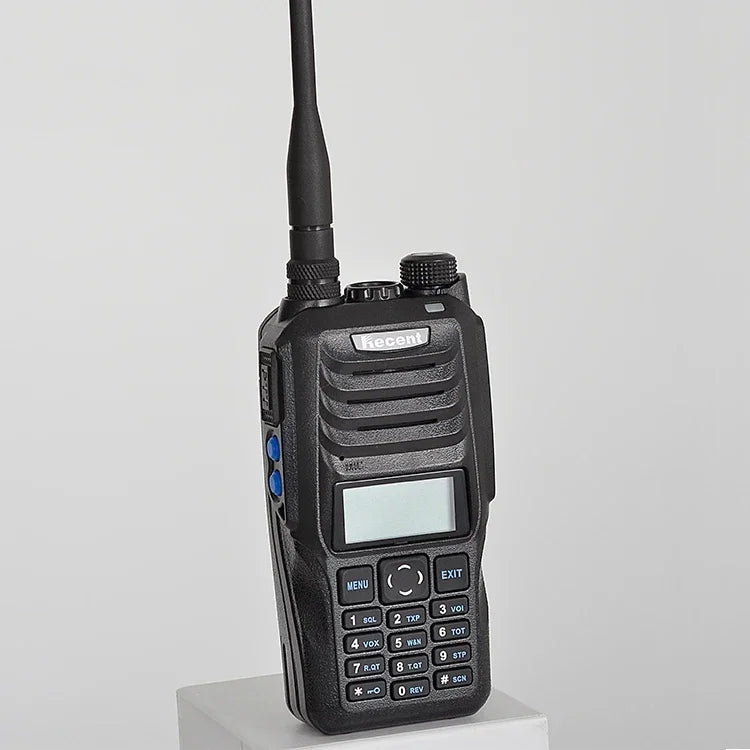

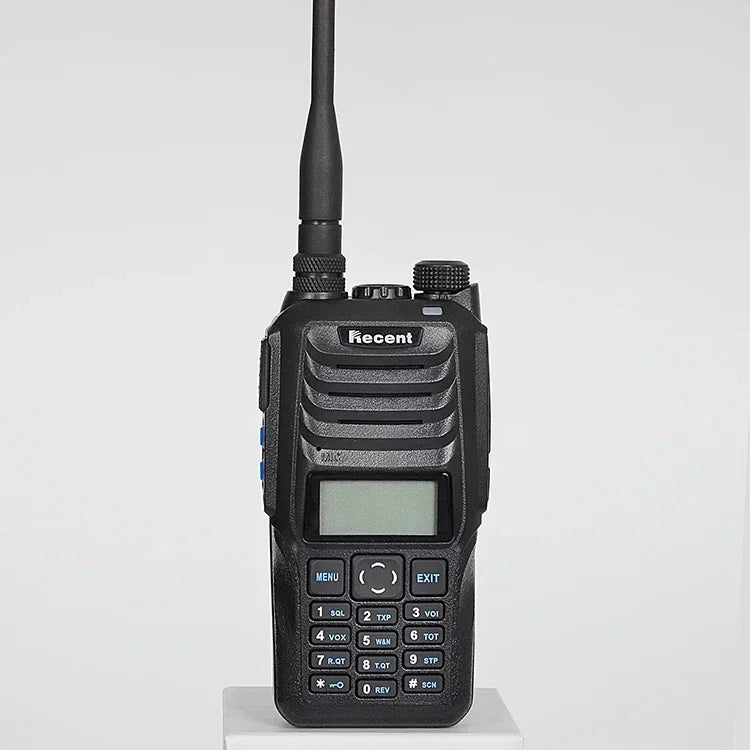

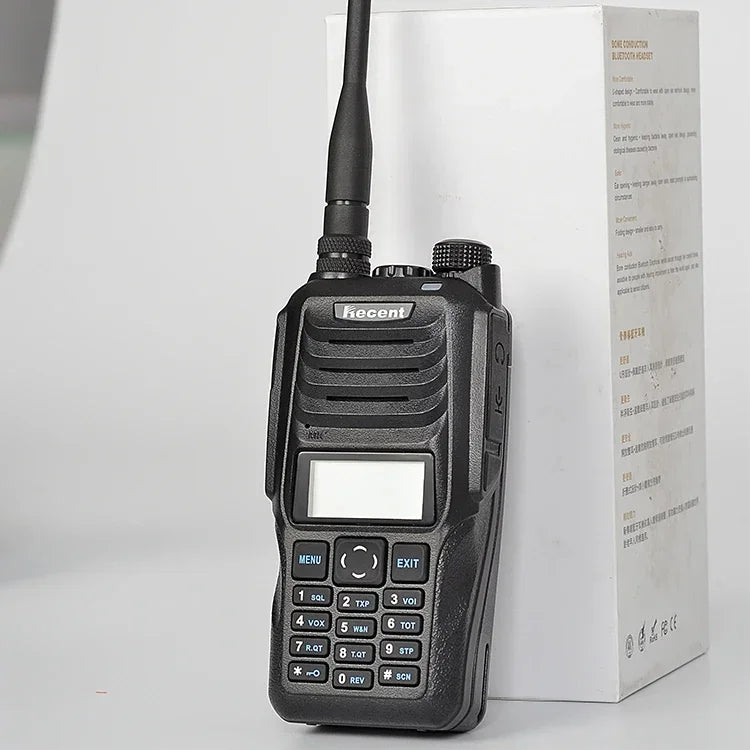

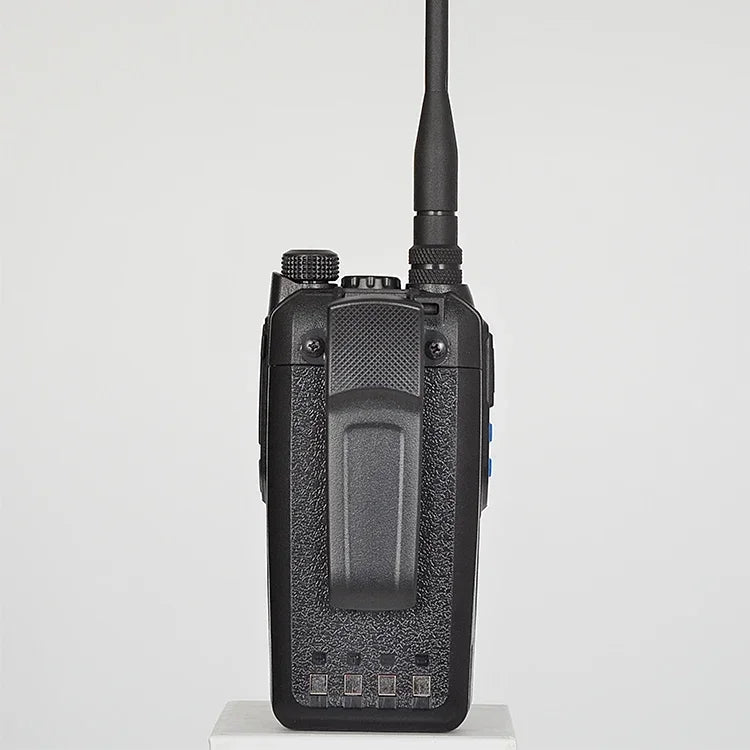

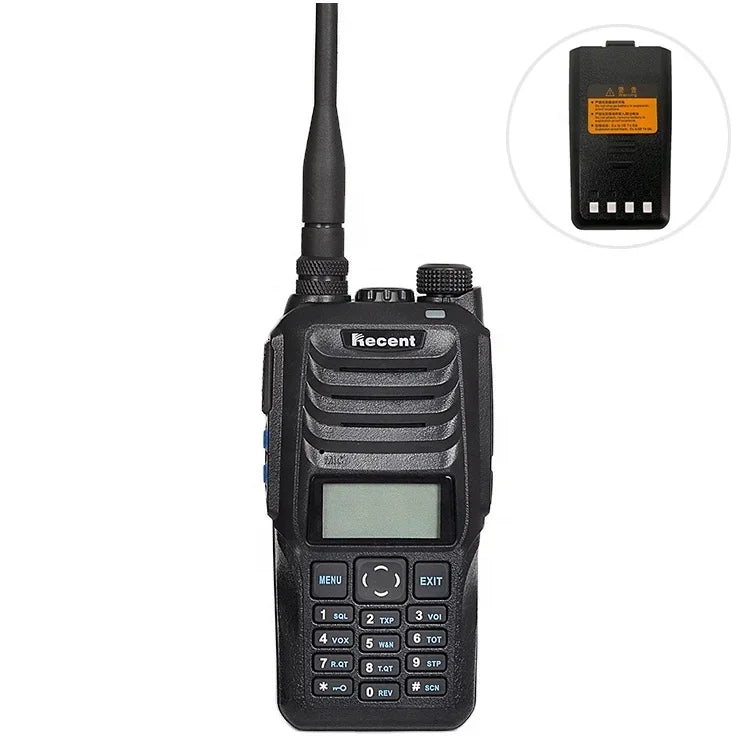

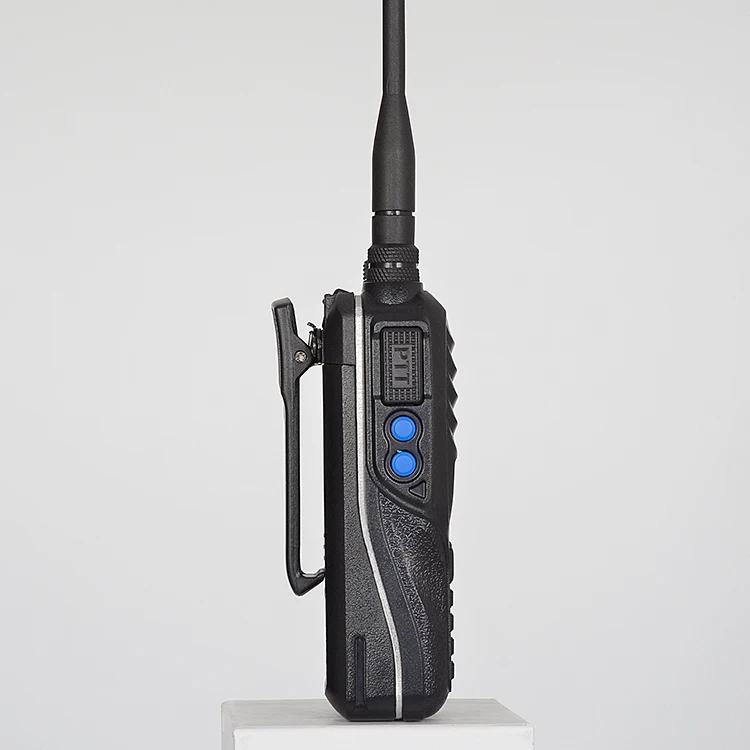

Details Images

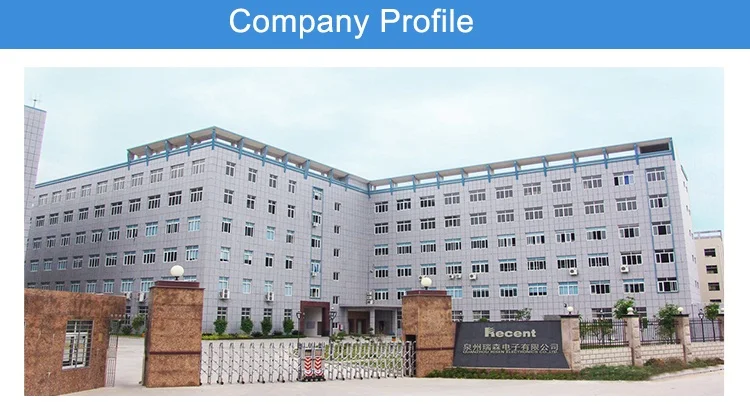

Company Profile

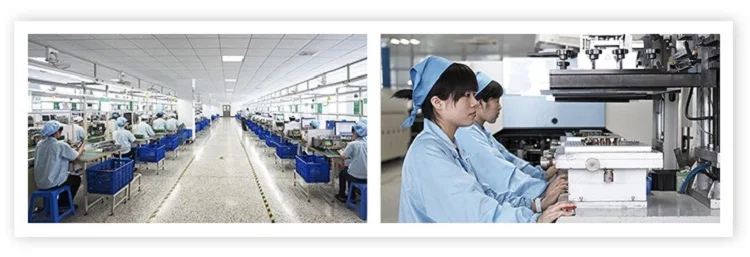

Located in Quanzhou City,Fujian Province,Quanzhou Risen Electronics Co.,Ltd is a top manufacturer and exporter who has more than 10 years experience,The company has gathered a group of talents both in R&D,manufacturing and in marketing of ATEX Explosion-proof radios,VHF Marine Radios,GMDSS Two Way VHF Radiotelephone,AlS Net Locator,DMR/Dpmr Digital Radios,Analog Radios,HF SDR Transceivers,3G,4G PTT Over Cellular Radios.RISEN dedicates itself to providing "Great Radio Solutions"to consumers worldwide. RISEN has confidence to serve worldwide partner better from: Production Base:Acreage:6,000 square meters, including:Manufacturing base,R&D Centre,Samples showroom  Core Equipment:AIS detector,GPS tester,Ultrasound,Glue machine,Spot welding,Capacitance meter,Waterproof tester,High and low temperature mac hine,Soldering station,Spectrum Analyzer,Frequency Scanner,Flash Block,Oscilloscope,Digital Comprehensive Tester,Attenuator,Multimeter,Power Supply,Automatic dispenser etc.; Production Capability:Over 200,000 of marine radios capability per year.Most of the raw materials of our products have been tested strictly according to standards. OEM:We are the OEM supplier for many brands worldwide.Mould Developing:R&D Centre is responsible for all mould development,we can meet our consumer's new design image. Limited warranty:12 months(calculated from the exporting date from RISEN)for all radio items. Complaint:We have a set of smooth operation process for the customer complaints.We will solve it in as far as possible when we get the picture,problem description,series number for the item and order number for complaints. In our promised limited warranty date,spare parts free,we will charge you parts cost if the complaint item out our limited warranty date. Quanzhou Risen Electronics wishes to bring consumers a higher level of reliable and impressive radio experiences through its continuous improvement in performance.Dealers who value brand name and long-term cooperation are most welcome for a close cooperation,which will definitely lead to continuous improvements on the quality of consumers'radio experience worldwide.

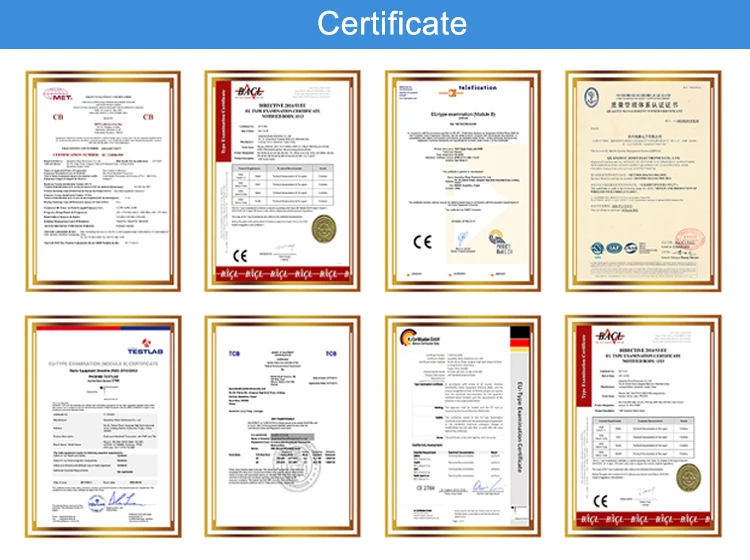

Certifications

Our Advantages

Packaging & Shipping

FAQ

1.Q: Are you a manufacturer?
A: We have more than 10 years experience, owning a 6,000 square meters manufacturing base, more than 10 R&D engineers.

2.Q: What is MOQ (Minimum order quantity)
A: 2 pcs for sample test first is recommended. The price policy sets MOQ for bulk order based on cooperation relationship with us as a distributor, dealer or premium dealer, or OEM cooperation. Please contact us for details.

3.Q: Do you accept customized?
A: Rebranding is acceptable and OEM&ODM is welcome ,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

4. Q: Could you offer free sample to test?
A: Sample will be charged firstly, but will be refund to you when you put bulk order on us.

5.Q: What is your lead-time for order?
A: 1-2 day for sample, 3-30days for bulk order, depends on the quantity for new inquiries. We do forecast for long-term business relationship partners.

6.Q: When can I get the quotation ?
A: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.

7.Q: How do you ensure your quality?
A: The product is designed and produced with good material in the industry. The company is ISO 9000:2015 certified and we make 100% OQC before delivery. Both above reasons ensure low defective rate for our products. We set warranty policy for products and accessories. Please contact us immediately if some unpredictable defectives happen.
